“Haven”· Sprinter 144” 4x4 Conversion

ha·ven /ˈhāvən/ noun : a place of safety or refuge

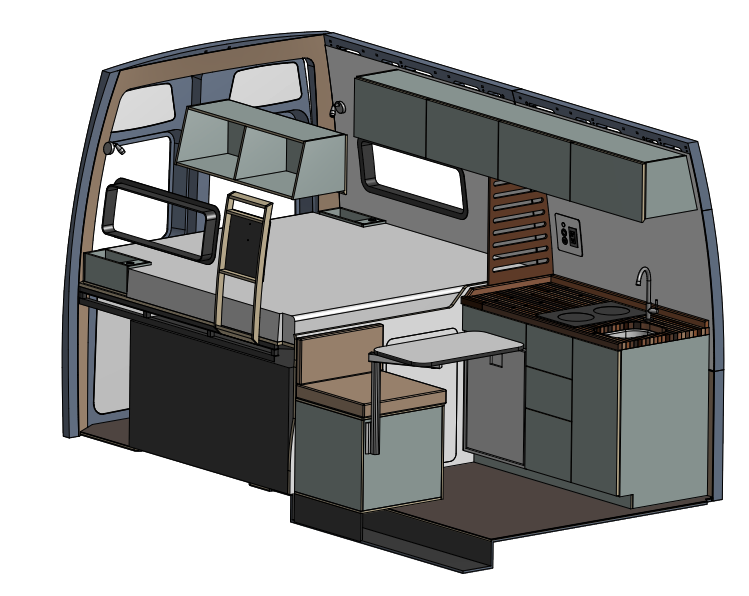

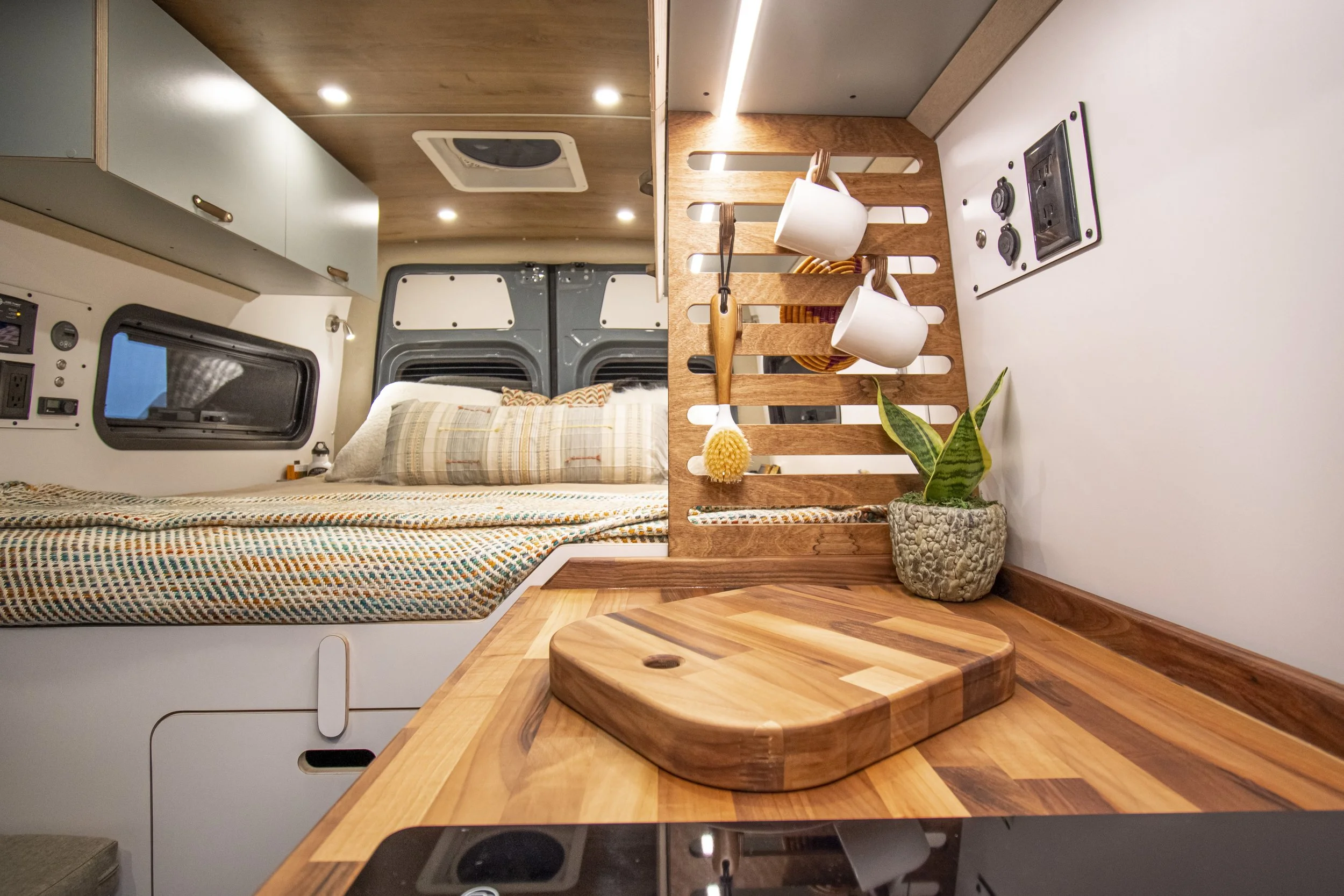

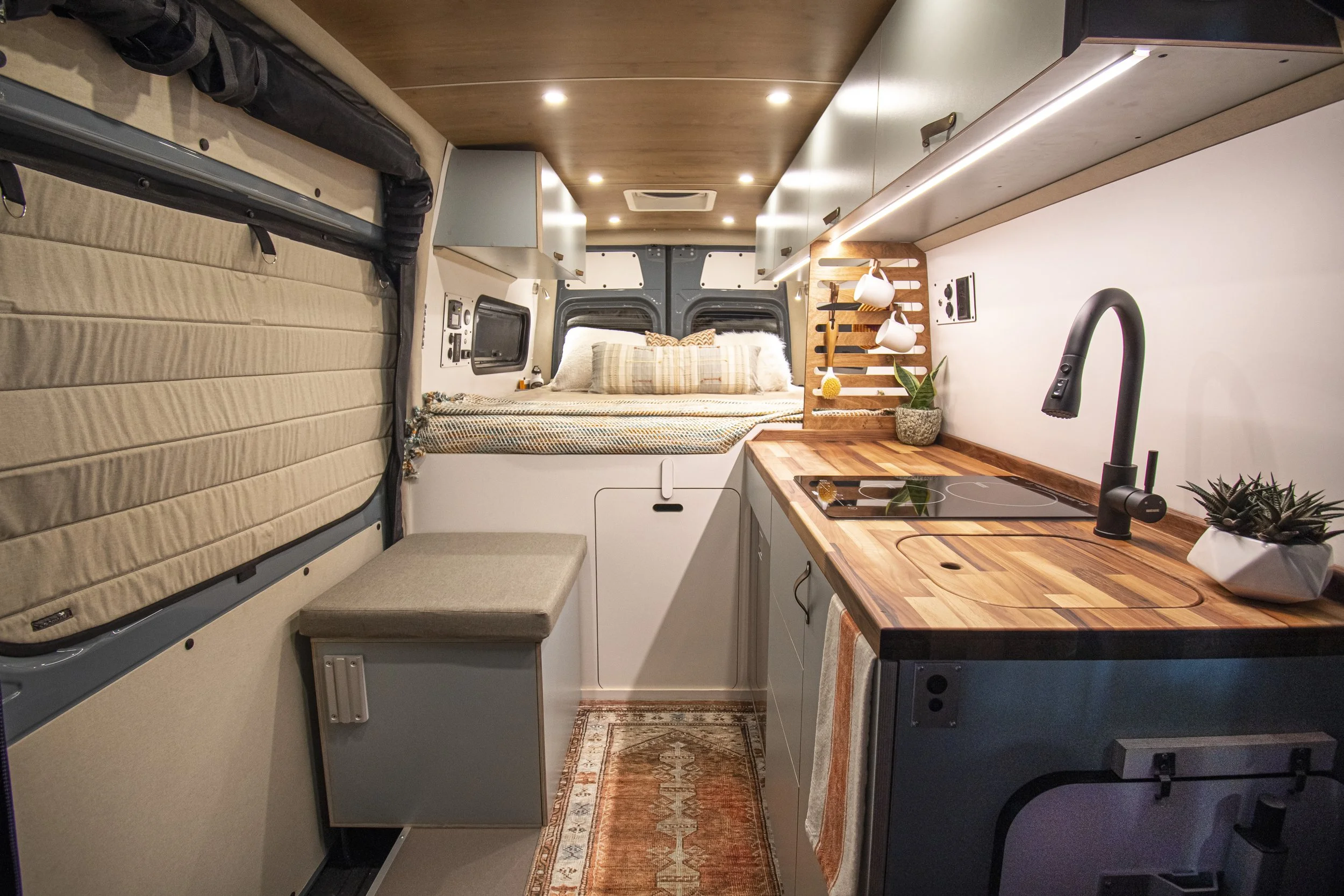

Built on a 2021 Mercedes Sprinter 144” 4x4 chassis, Haven is a little slice of home on the road. This oh-so-cozy design was equipped with a robust 400ah lithium battery system, a 20 gallon fresh water tank with tankless water heater, custom bedside cubbies with 12v outlets, walnut butcher block counters, a lattice partition with storage hooks, sliding door insect screen, and the dreamiest fossil blue cabinetry that we’ve ever seen. This is a similar layout to our Alpine Series: Peak Model.

Build Spec

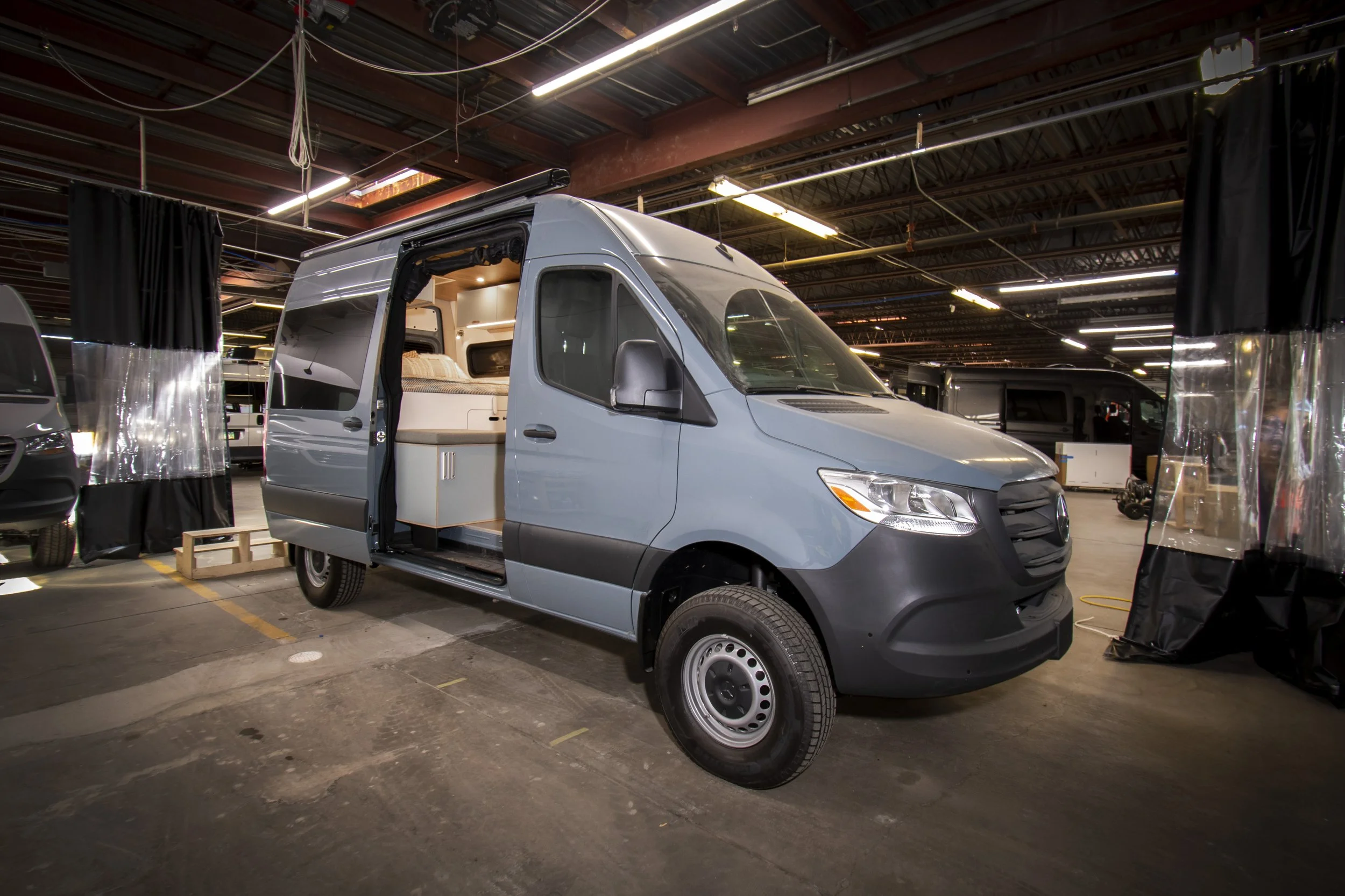

Base vehicle

  • 2021 Mercedes Sprinter 144" 4x4

  • 6cyl Diesel

Exterior

  • Driver and passenger 10x33 bunk windows

  • Fiamma Awning F80 S

  • RockyMounts BackStage 2 bike hitch rack

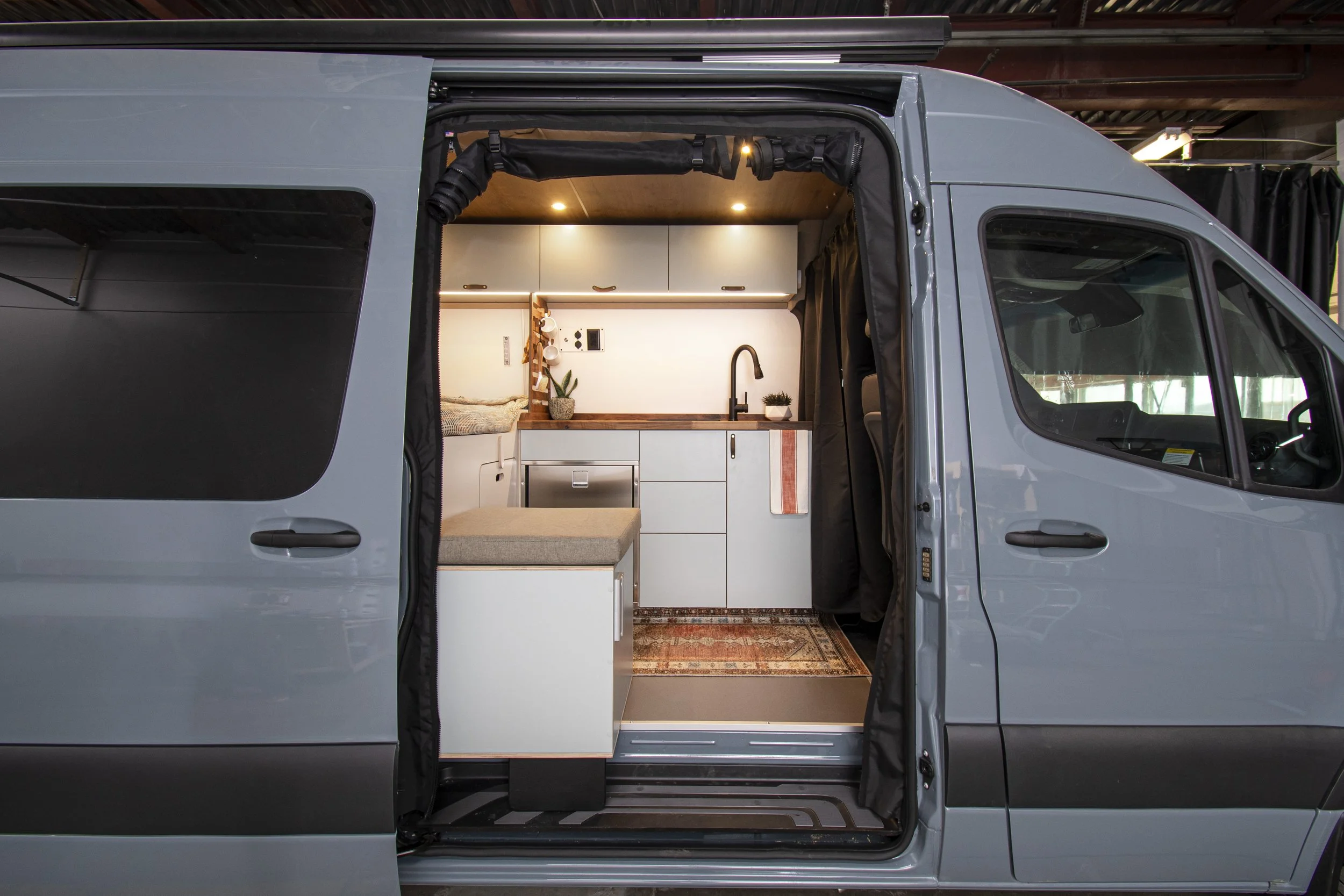

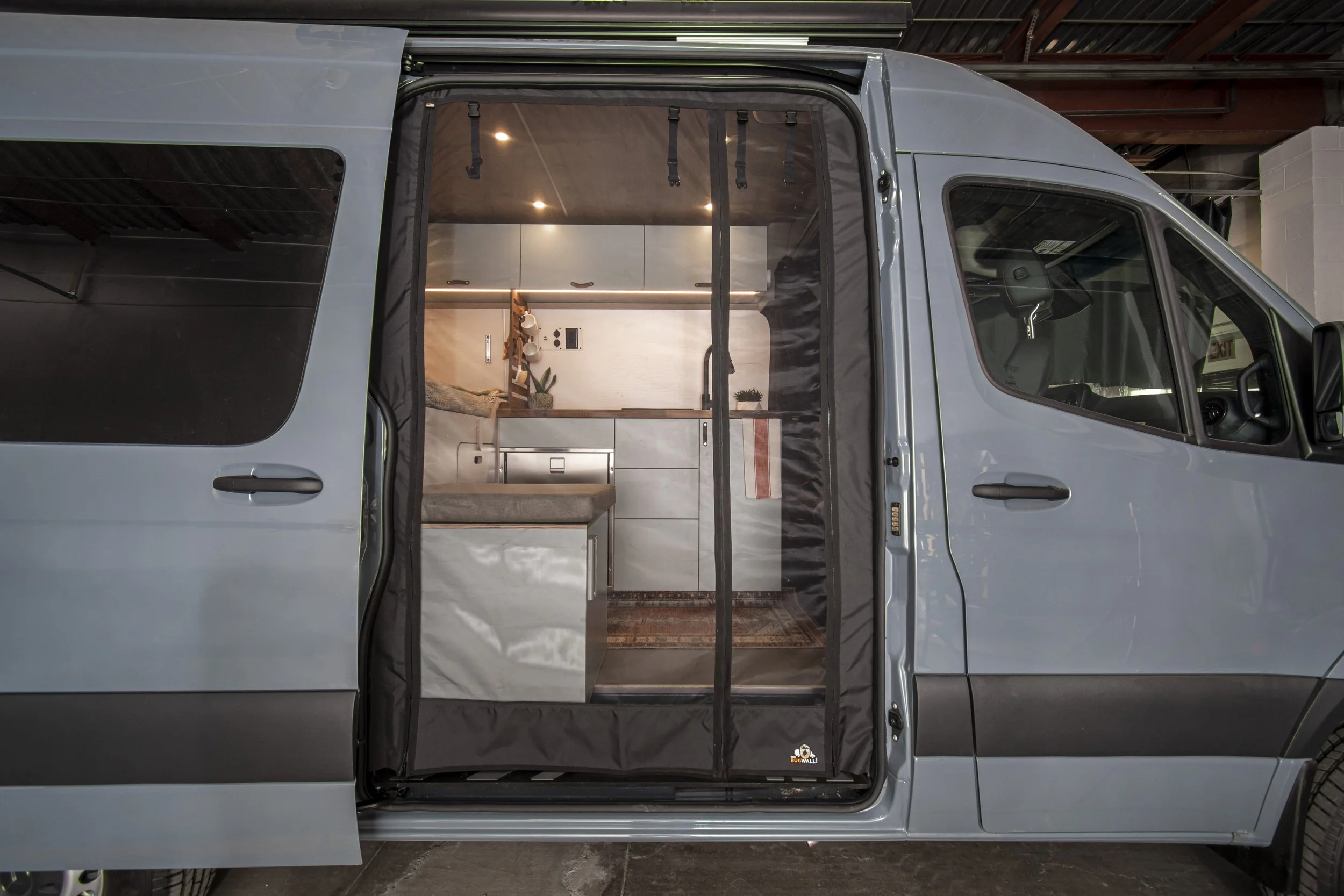

  • BugWall sliding door insect screen

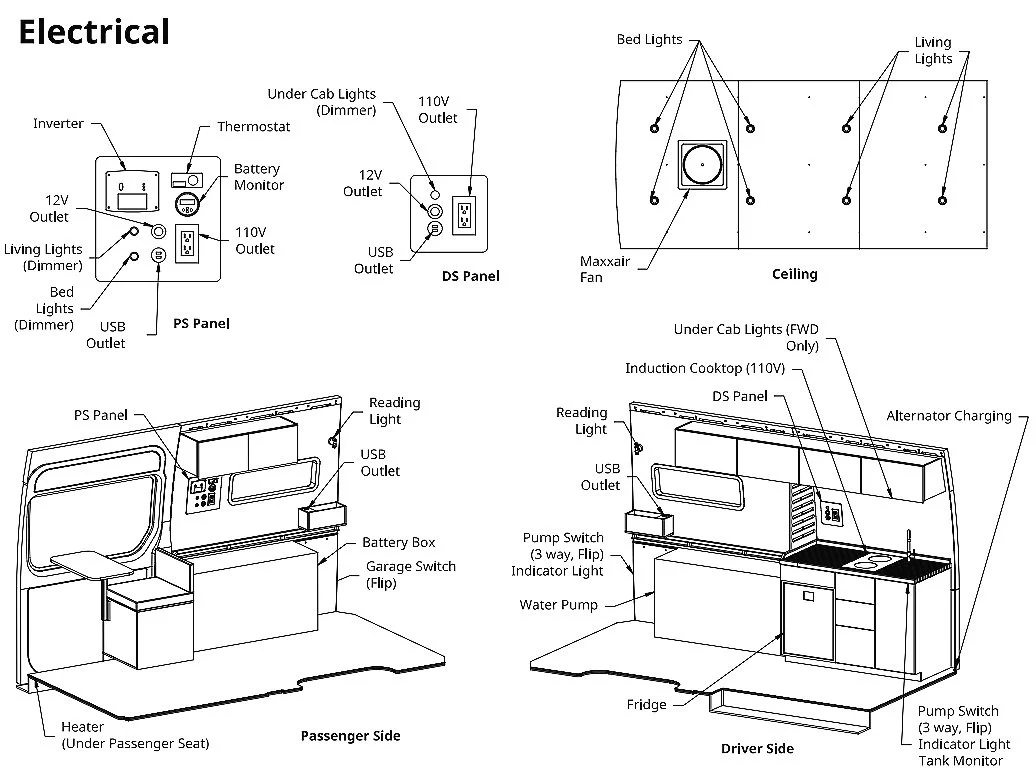

Electrical System

  • 320 Watts solar charging system

  • 400ah LiFePo4 Battery system

  • 3000 Watt Inverter Charger

  • Smart Alternator DC - DC charging

  • Multi Zone Dimming LED ceiling and under-cabinet lighting

  • Bluetooth enabled battery and system monitoring

Comfort

  • Espar D2L Airtronic Diesel Heater

  • Maxxair 7500k vent fan

  • 3M Thinsulate Insulation

  • Sound Dampening

Seating And Sleeping

  • 30” High Queen Bed

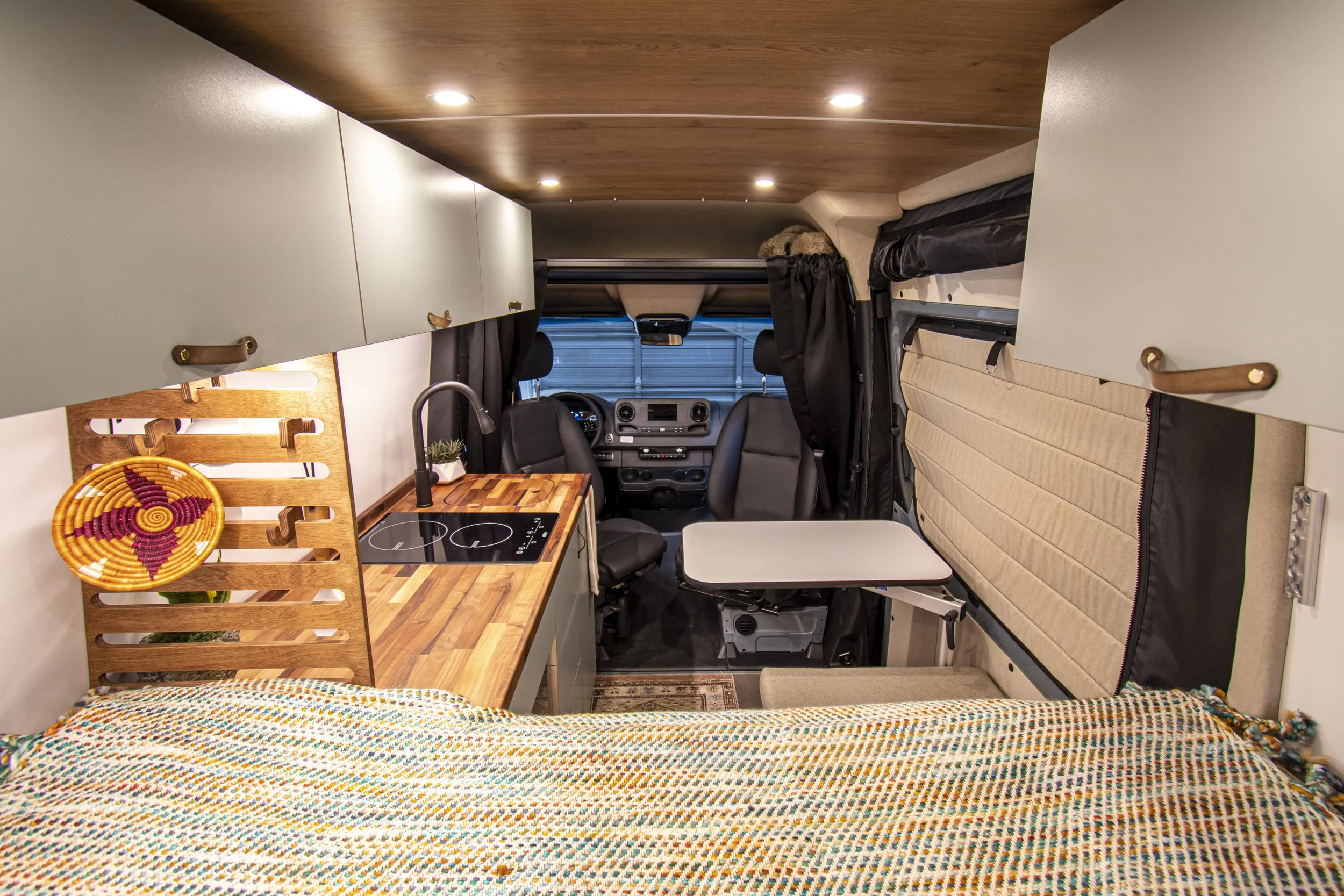

  • Driver and passenger seat swivels

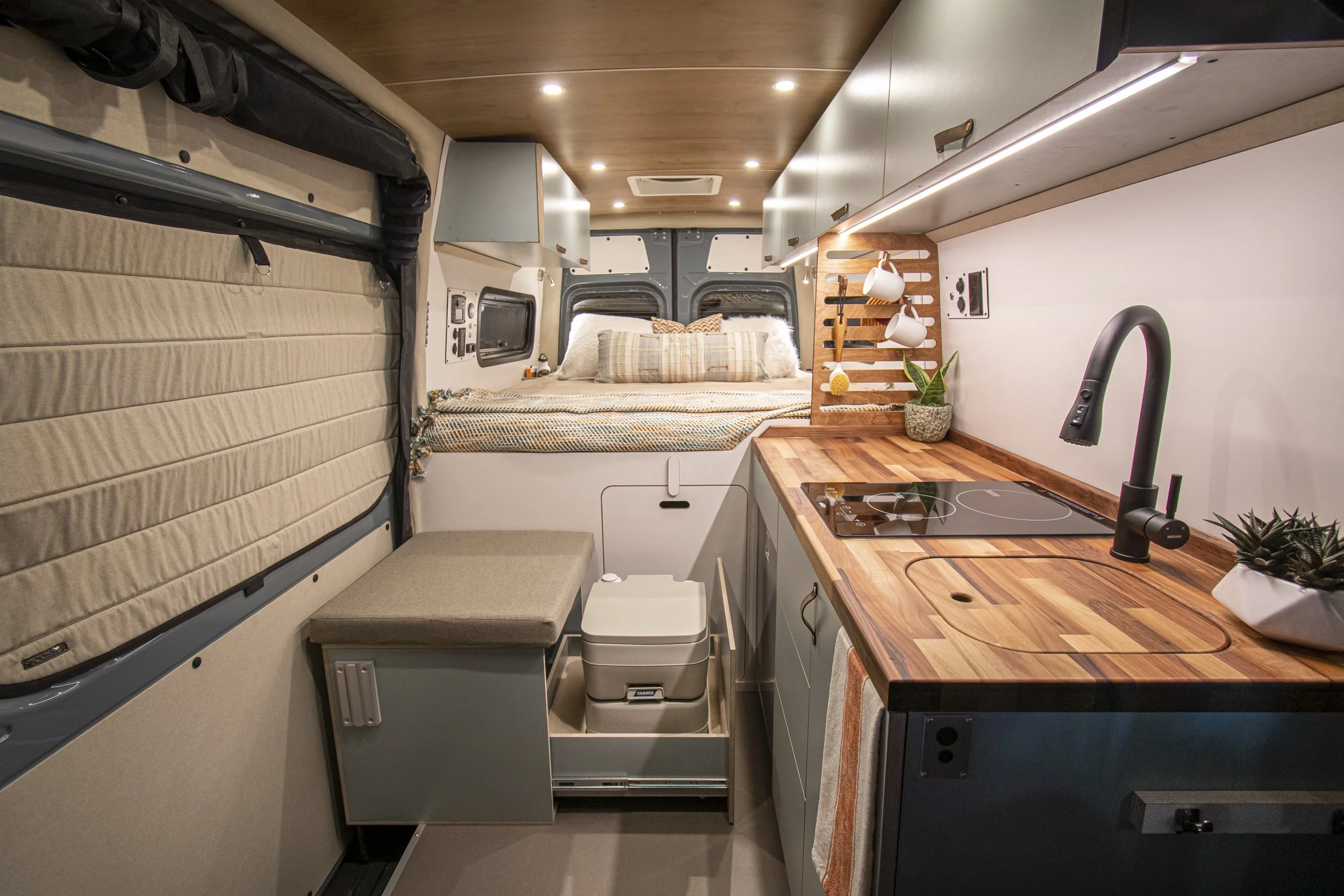

  • Custom bench with hidden cassette toilet

Living

  • 20 gallon fresh water system

  • Drinking water filter

  • Rear heated shower and rinse station

  • Under sink grey water system

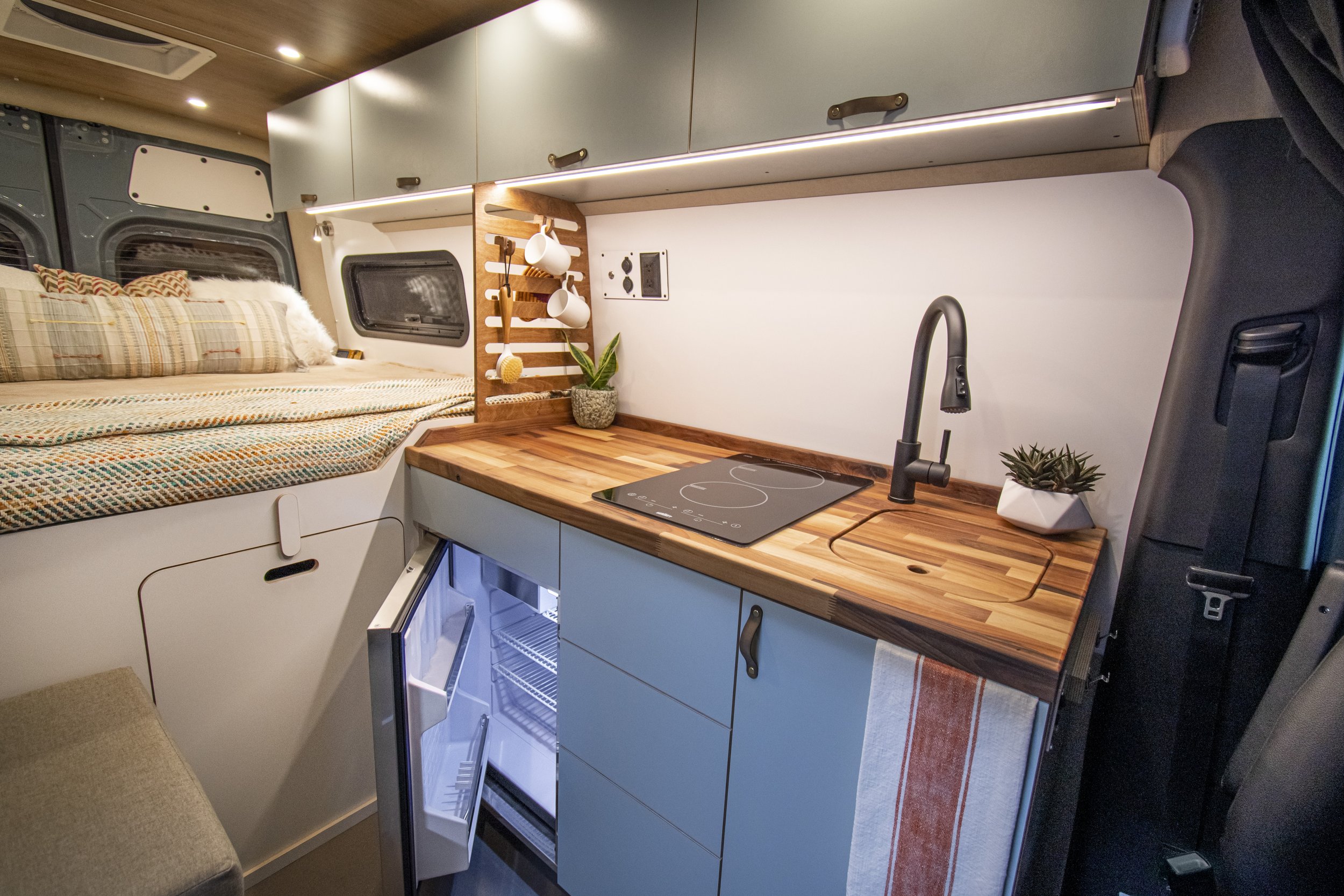

  • Cruise 85L Clean Touch refrigerator with freezer

  • Camco cassette toilet and slide out bench

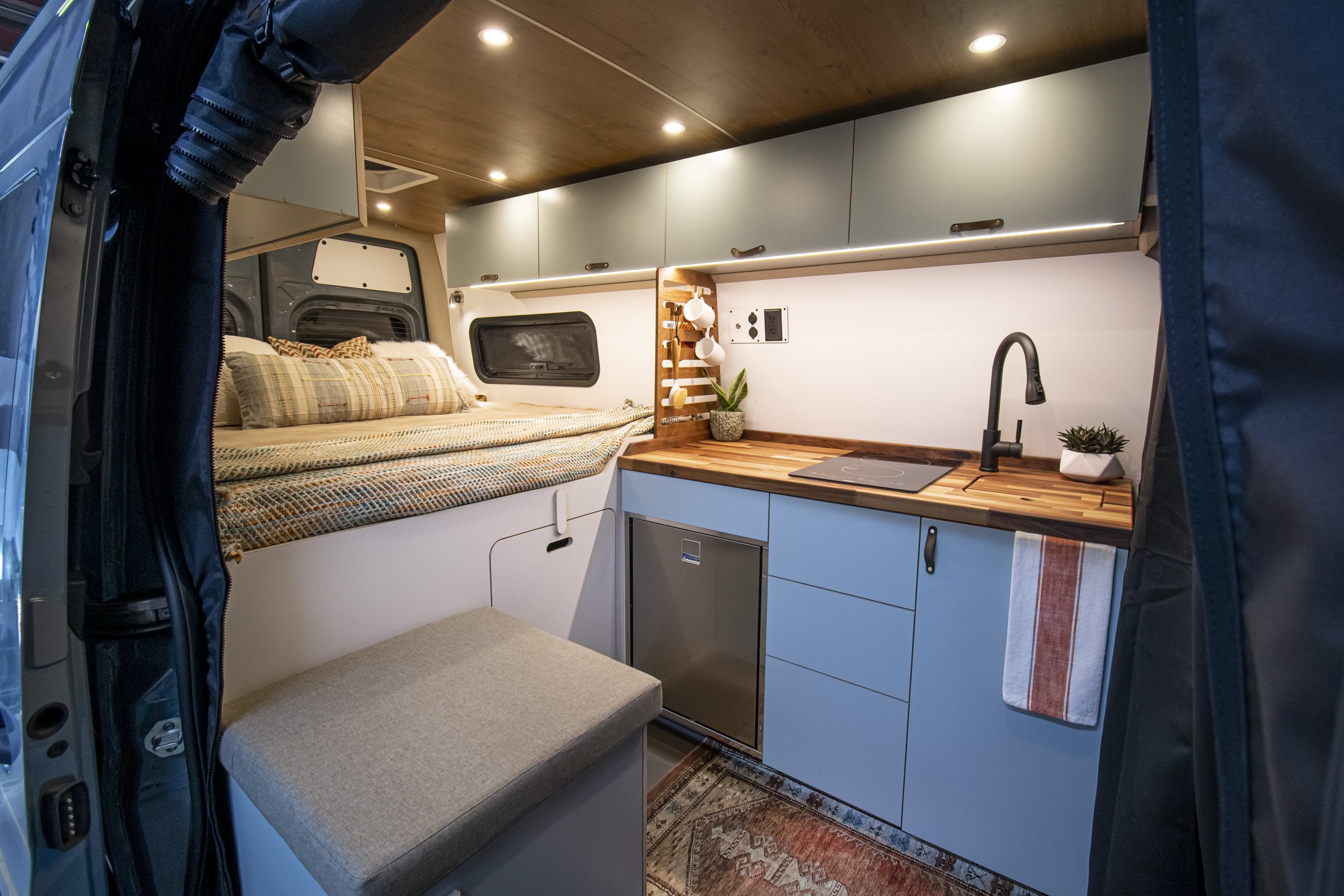

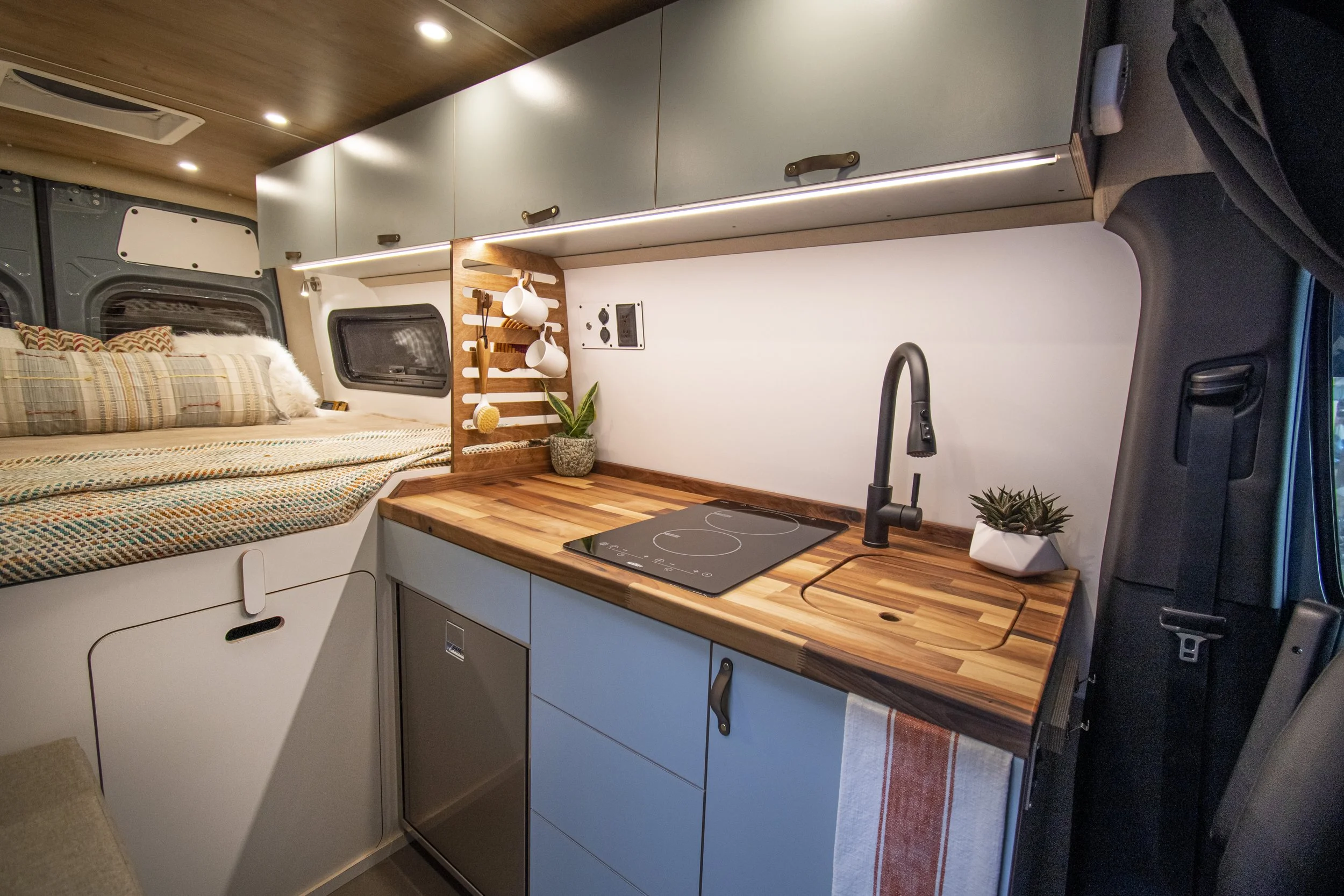

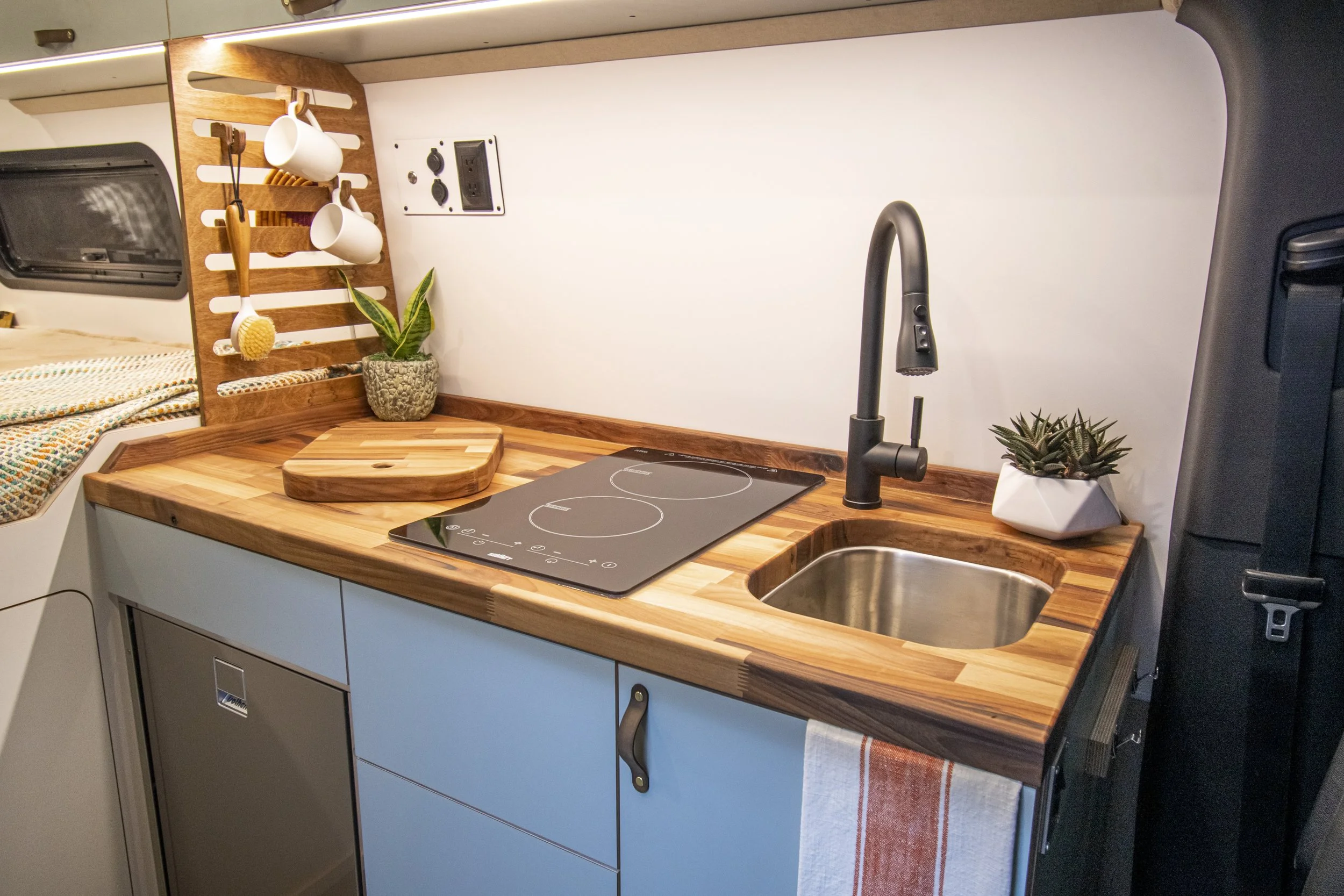

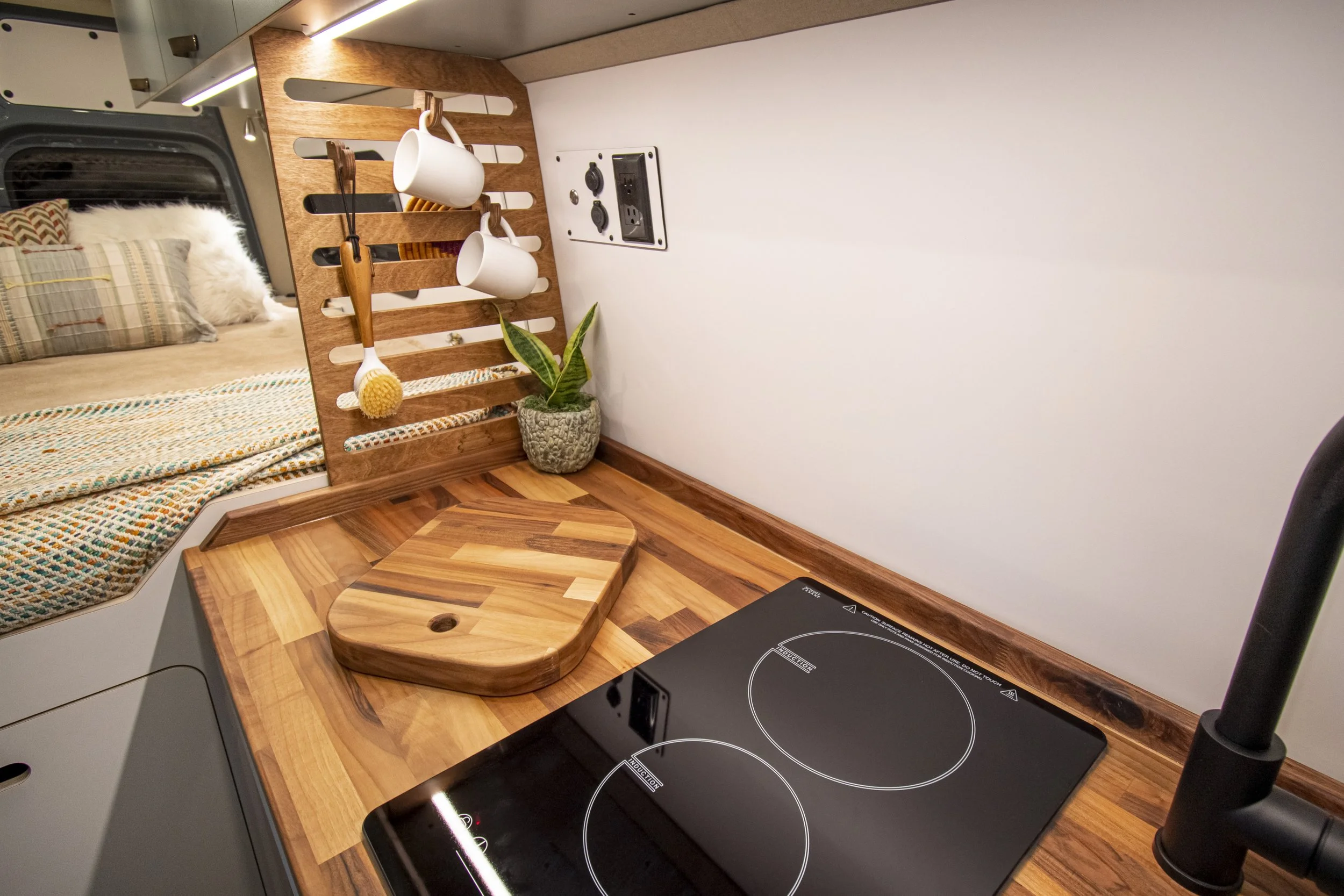

  • Driver Side Kitchenette

  • Driver and Passenger upper cabinets

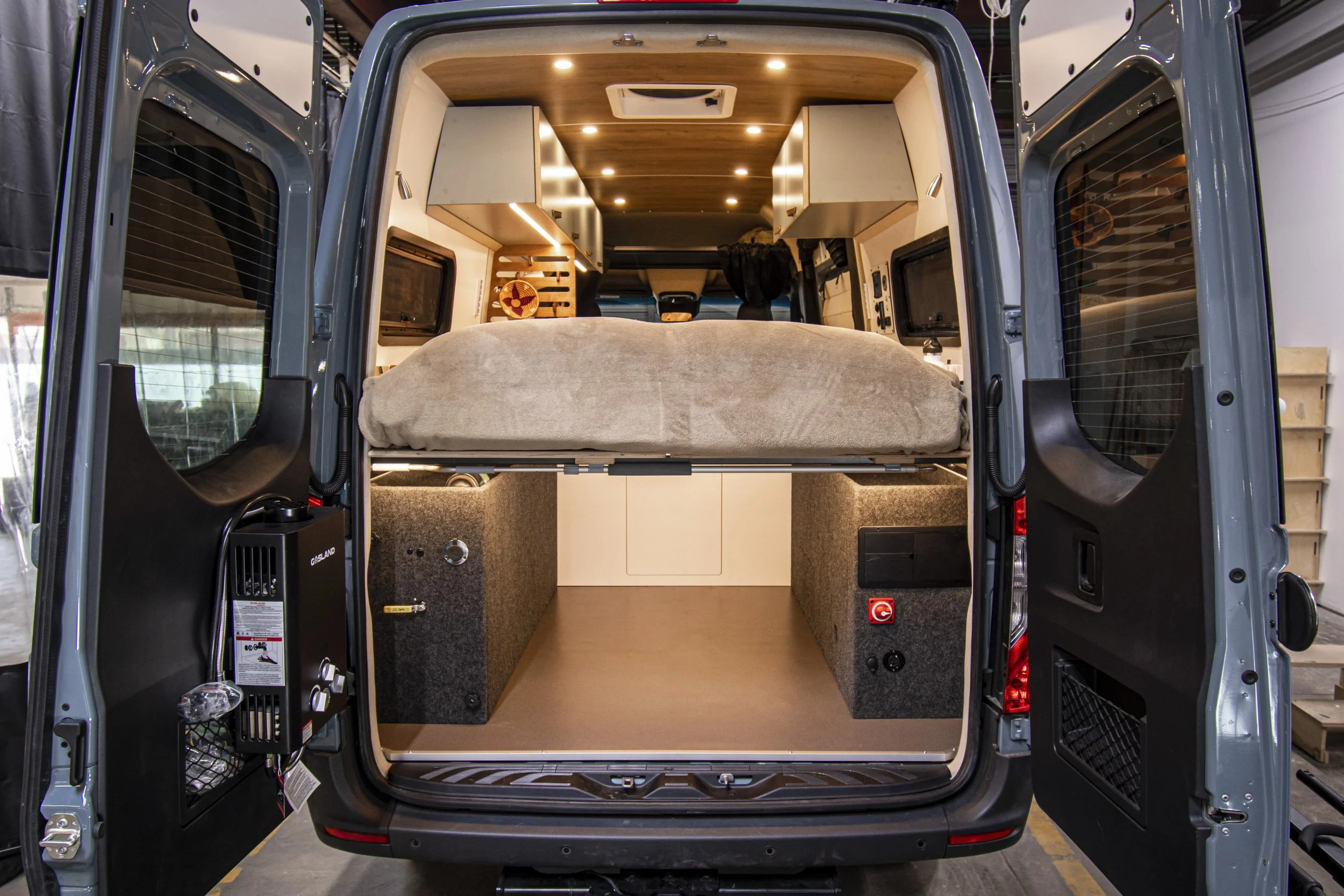

  • Bulkhead door to access garage

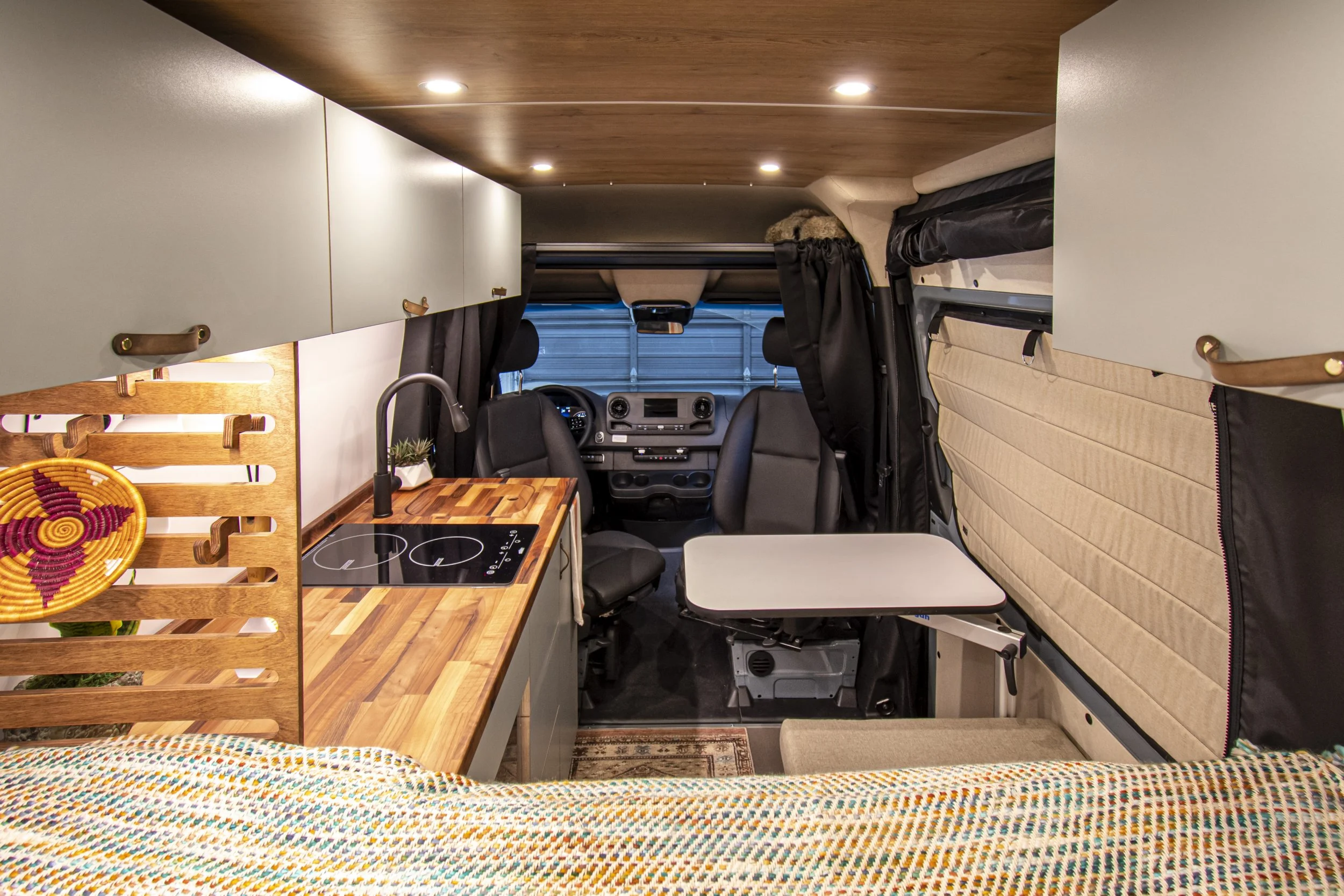

  • Lagun Table Leg System with custom table top

  • Headliner shelf with curtain rod

  • Bedside storage cubbies with 12v charging
